GENERAL FEATURES

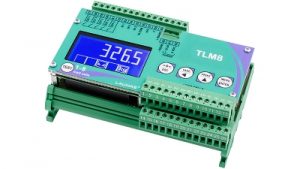

Weight transmitter with backlit graphic LCD display, 60×32 mm, 128×64 pixels. Four-key keypad for the system calibration. TEST key for direct access to the diagnostic functions. Dimensions: 148 x 92 x 60 mm.
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.

•

• 16-bit Analog output: 0/4-20 mA; 0-5/10 V
• Slave DeviceNet port, max 64 instruments.

• Slave CANopen port, max 99 instruments
• Slave CC-Link port, max 64 instruments

• Slave PROFIBUS DP port (max 32 instruments without line repeaters; max 126 instruments with line repeaters).

• Slave Ethernet /IP port, Slave Modbus/TCP port, Two EtherCAT ports, Two POWERLINK ports, Two SERCOS III ports

• Ethernet TCP/IP port for remote management (connectable to your PC, smartphone, tablet, etc. via web).

• RS485 port (Modbus RTU/Laumas ASCII protocol)
• 3 logic inputs, 5 relay outputs
• OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
• Mounting on Omega/DIN rail for back panel or junction box
